4. The Ditchburn Mk2R Music Maker 30
Technical & Schematics.
Page 1
Page 2
Page 3
Page 4
Page 5

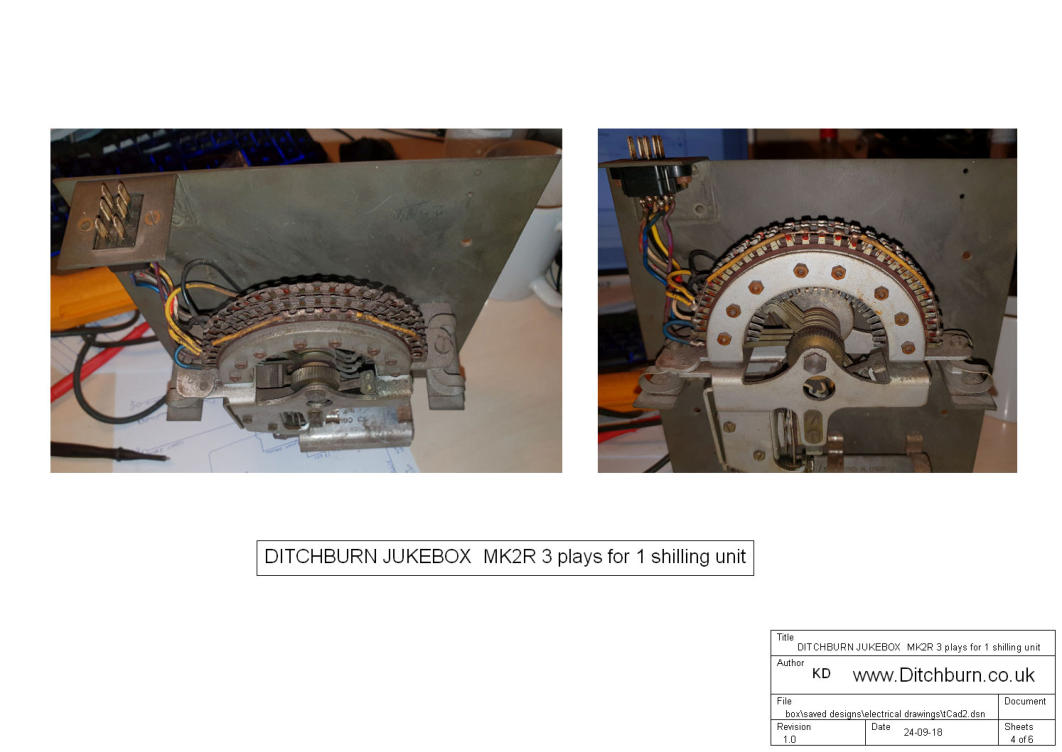

Page 6

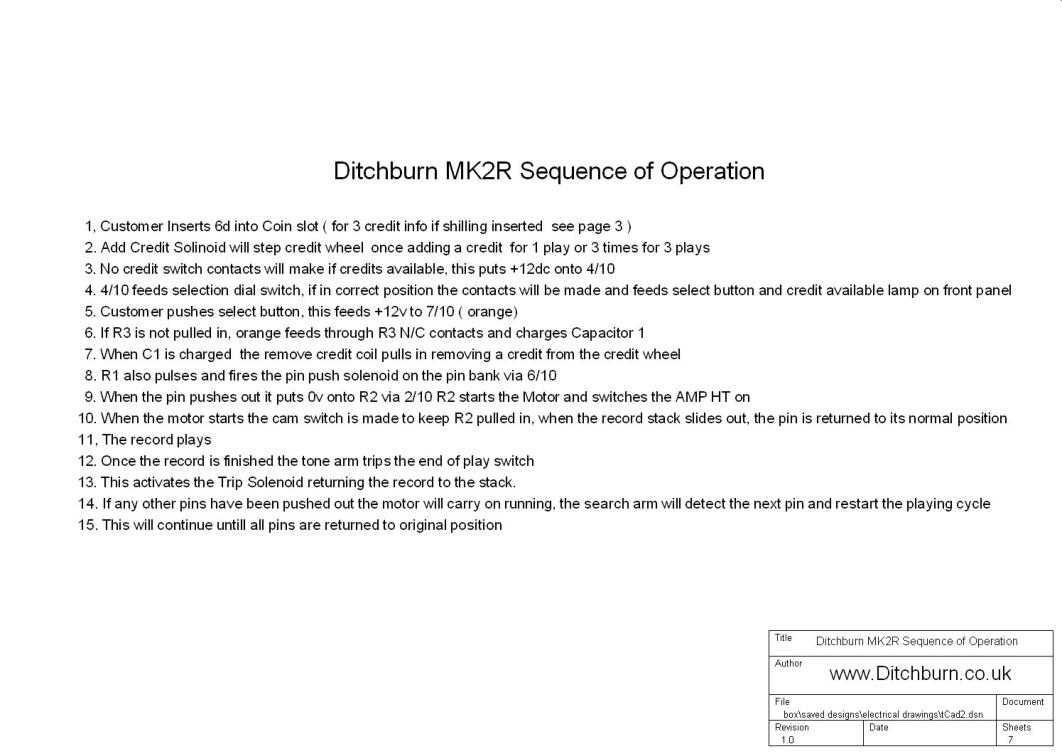

Page 7

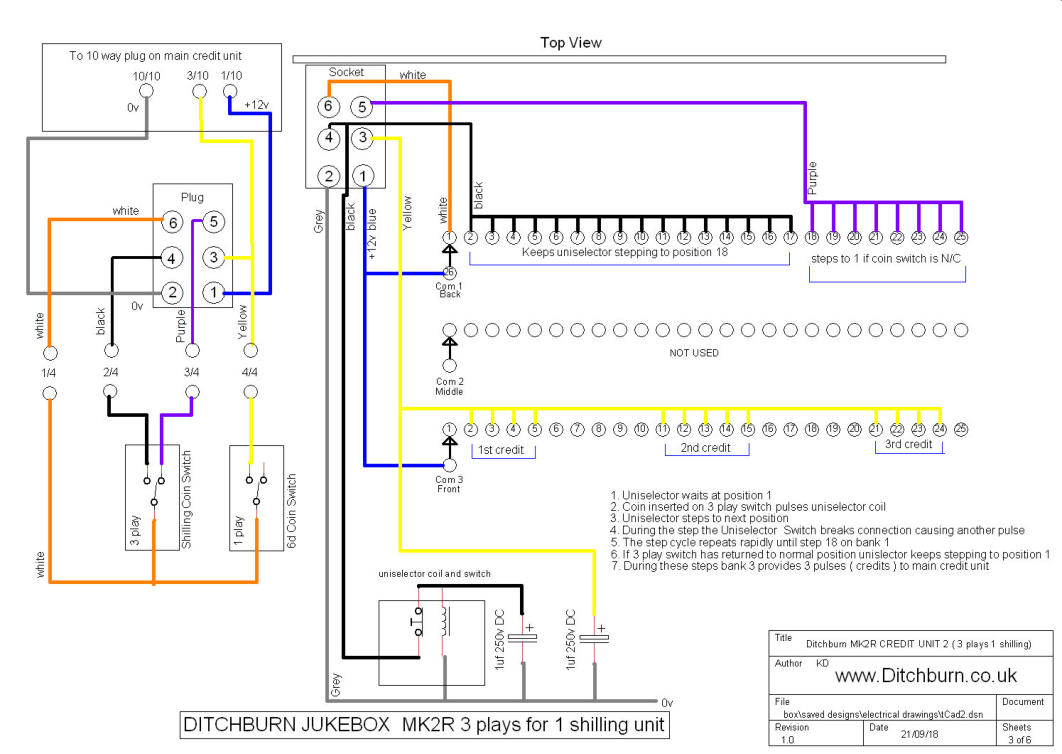

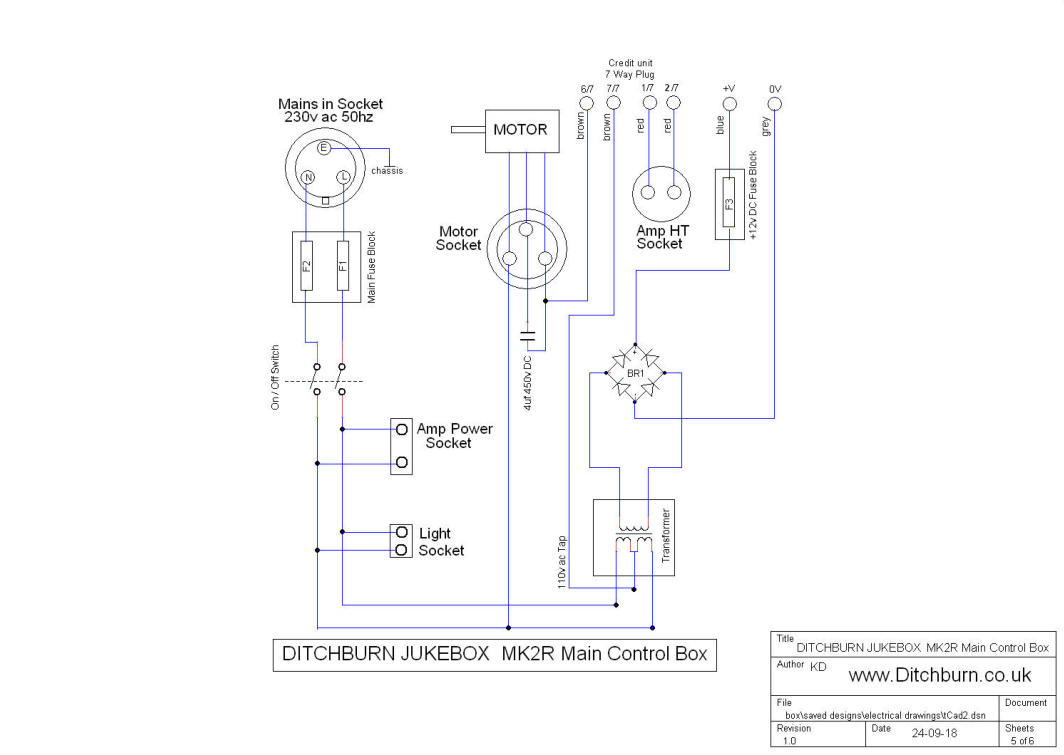

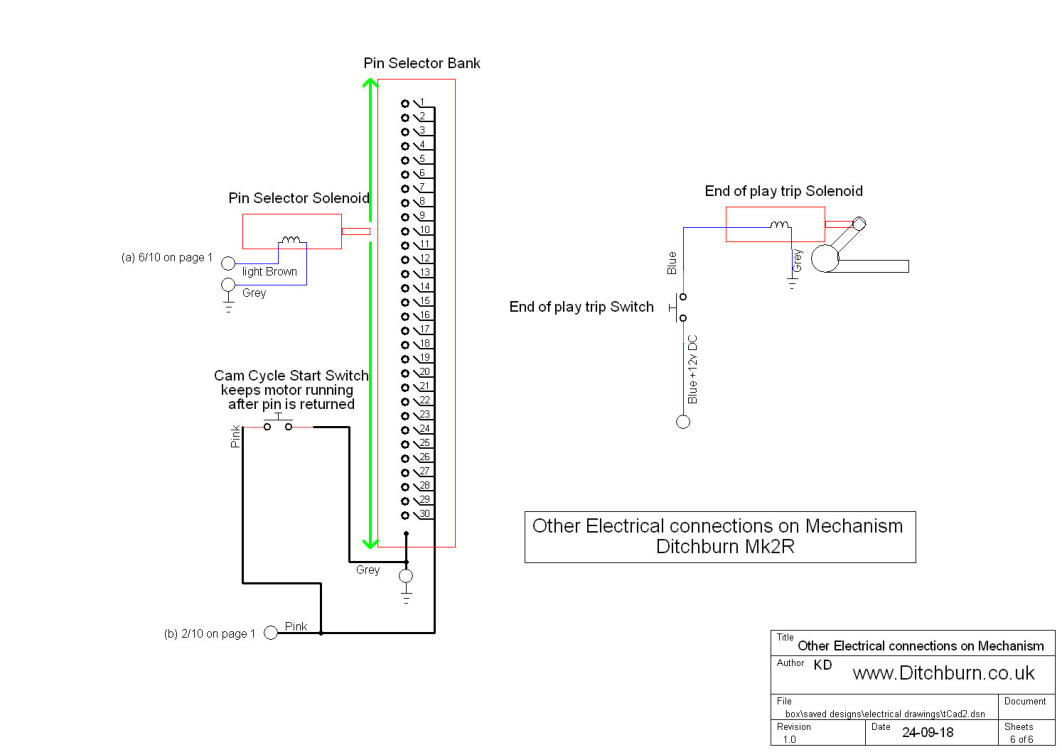

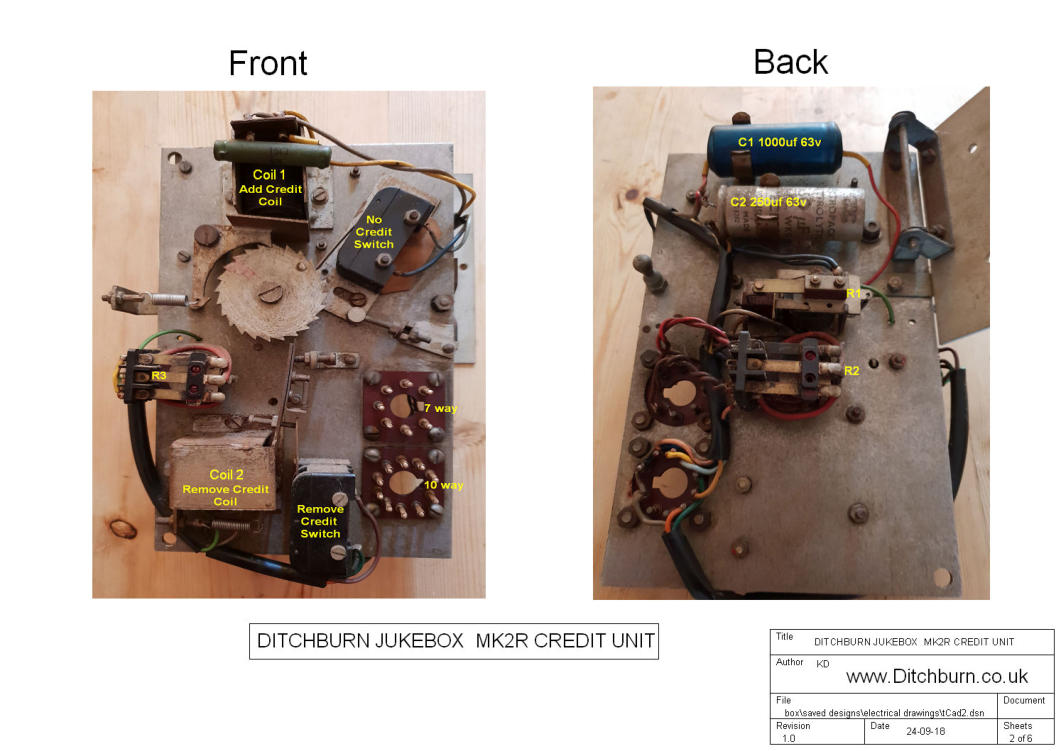

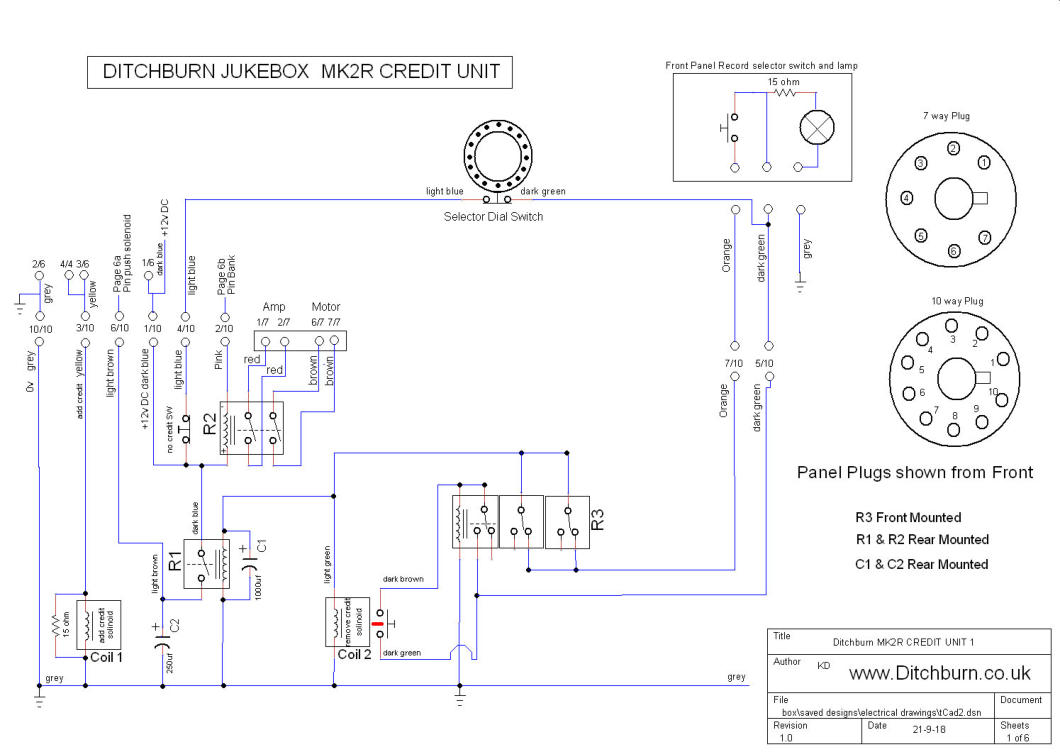

1958 The MK2R Electrical Schematics

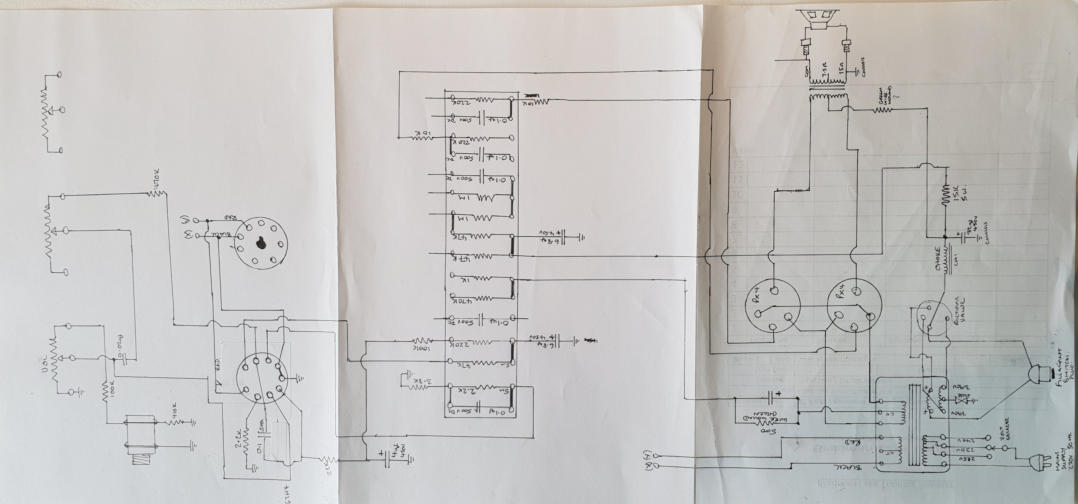

Ditchburn Mk2R Amplifier Drawing ( incomplete )

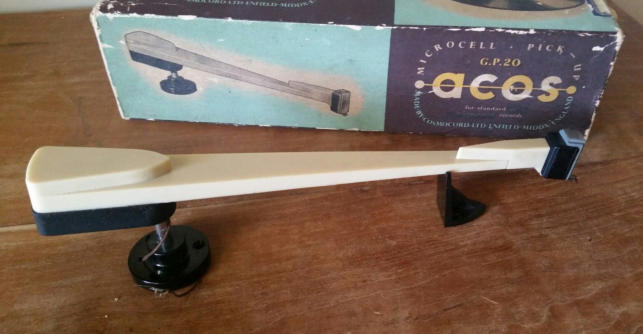

The Ditchburn MK2R Music Maker used the acos GP-20 style of Tonearm and HGP 39-1 LP Crystal Pickup

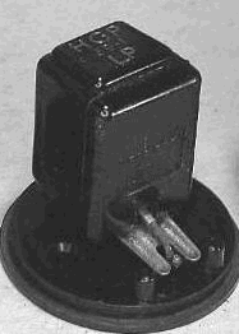

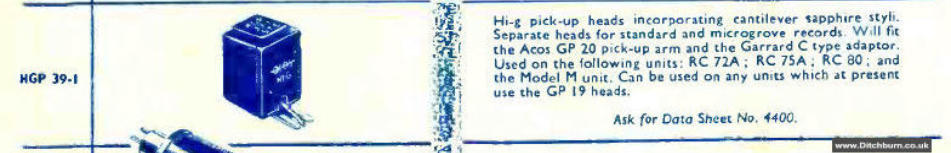

The Cartridge uses a crystal and replaceable Stylus

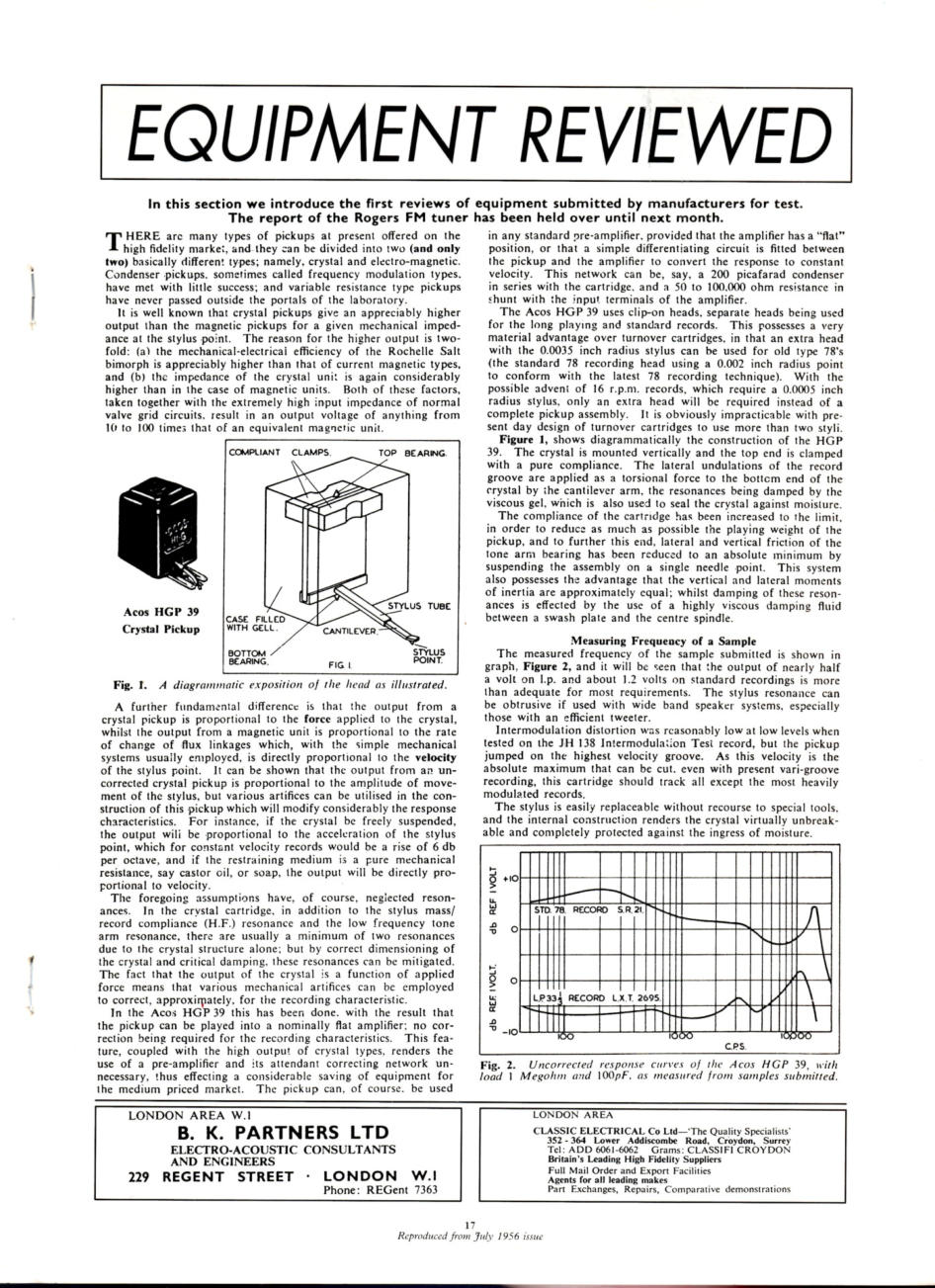

A 1956 Review of the HGP39-1 pickup part 1

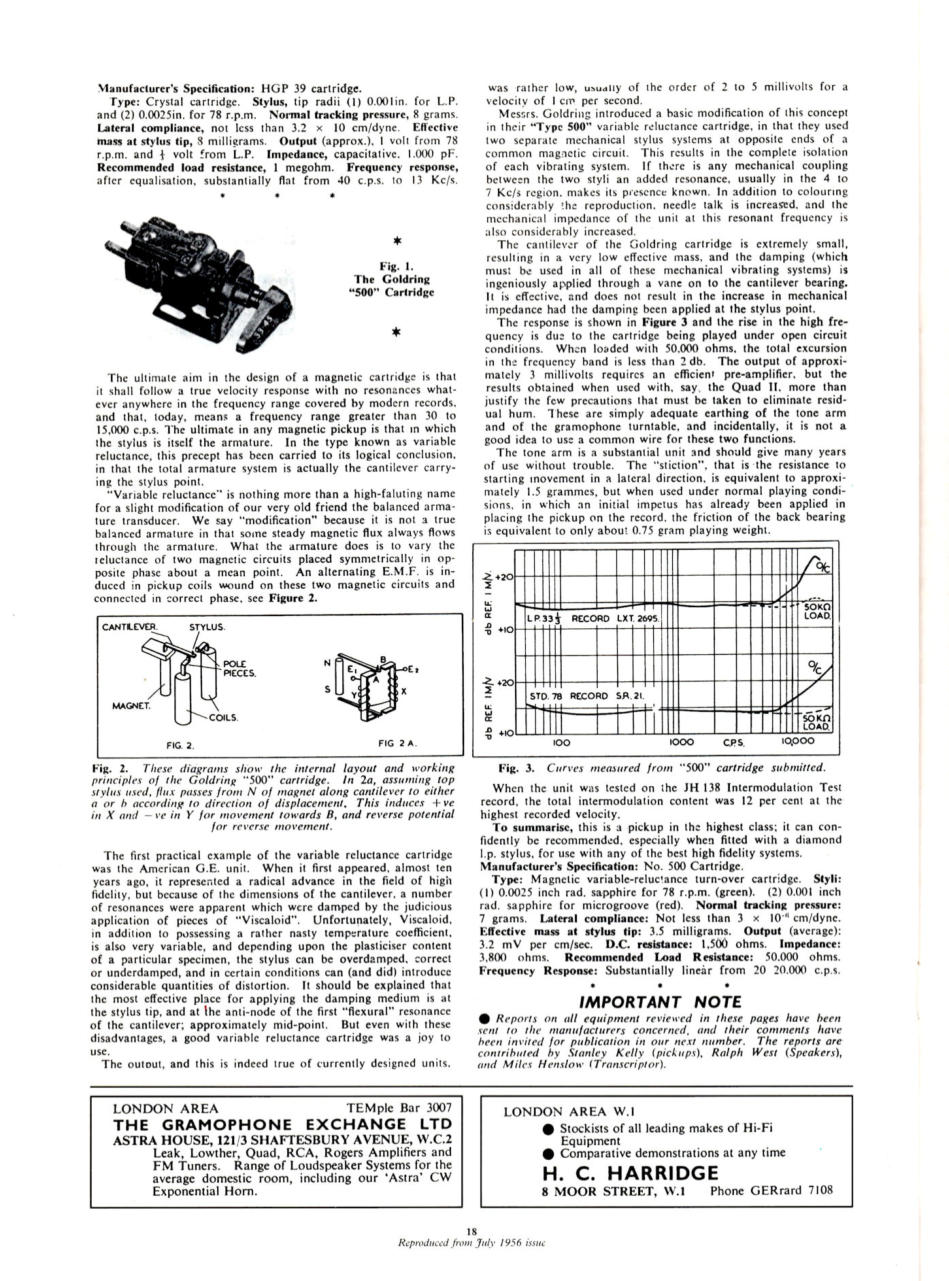

A 1956 Review of the HGP39-1 pickup part 2

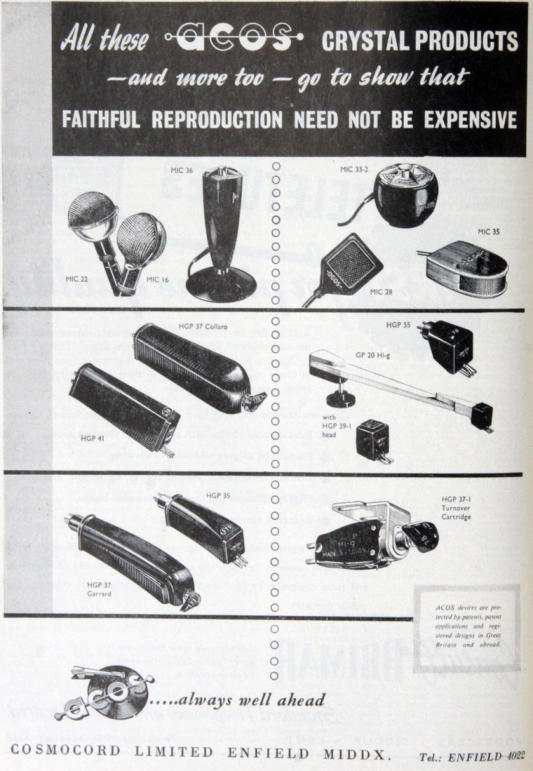

Advertisement of Acos products

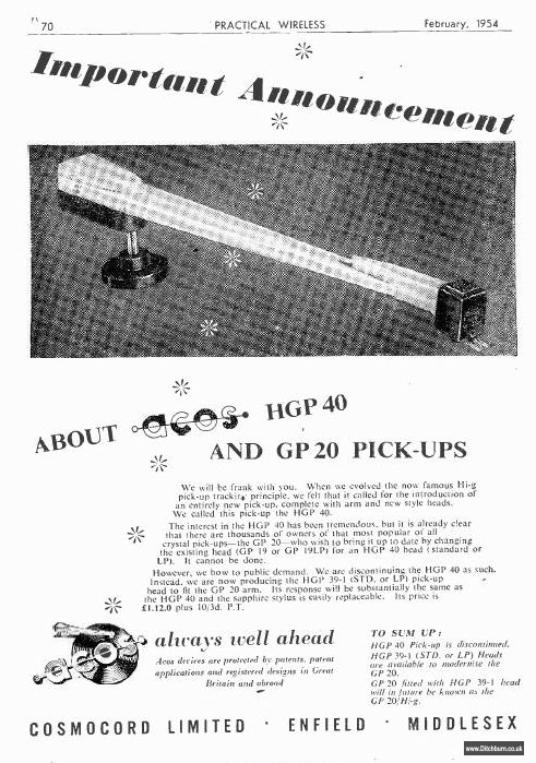

Acos announcement regarding its tone arms

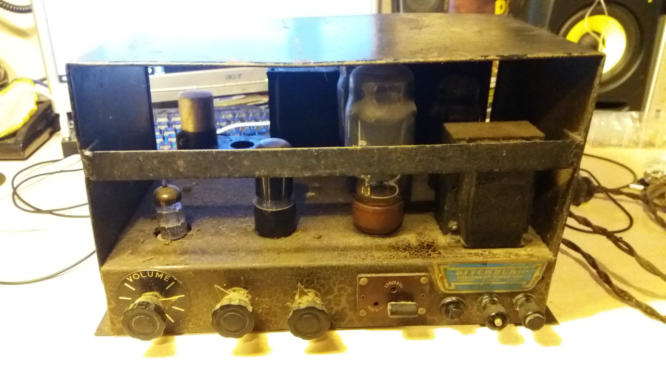

The BTH. British Thomson-Houston Co Ltd amplifier fitted to MK2 Music Makers

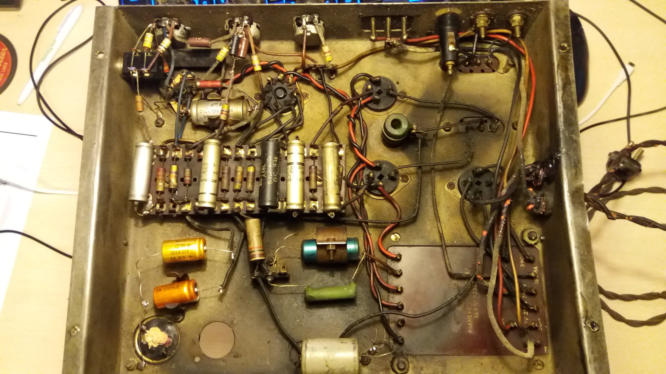

The underside of BTH. British Thomson-Houston Co Ltd amplifier.

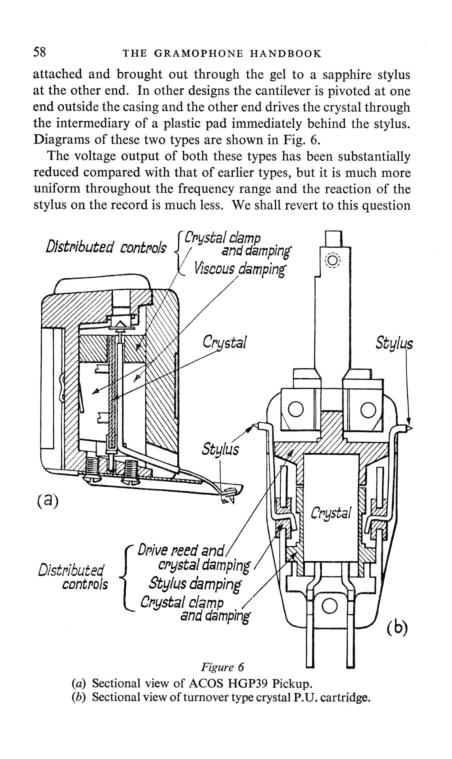

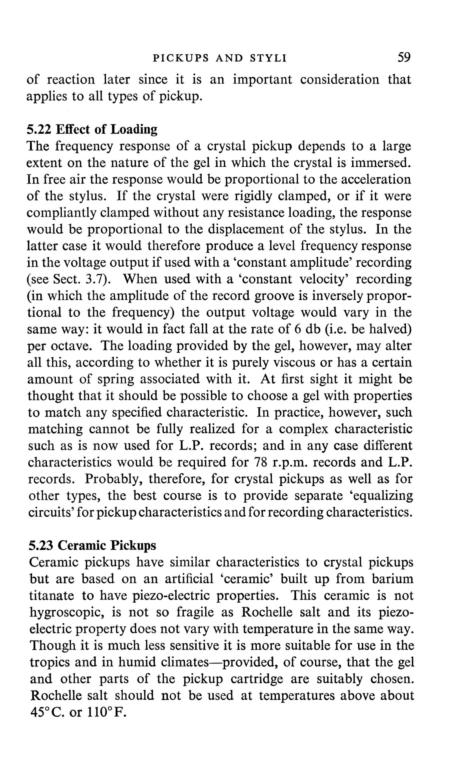

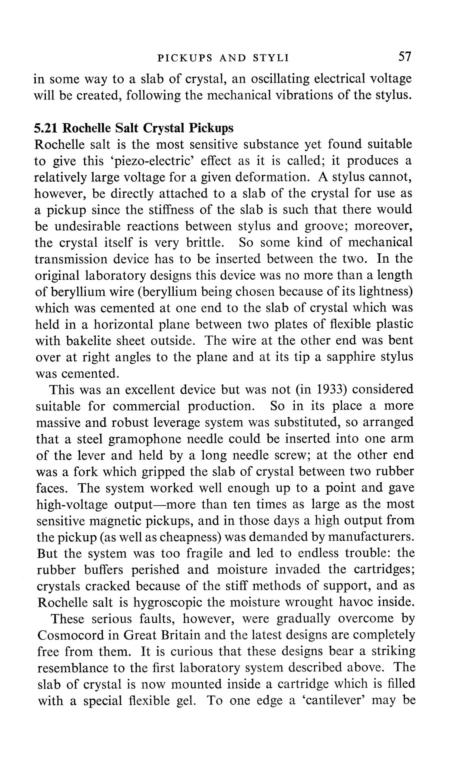

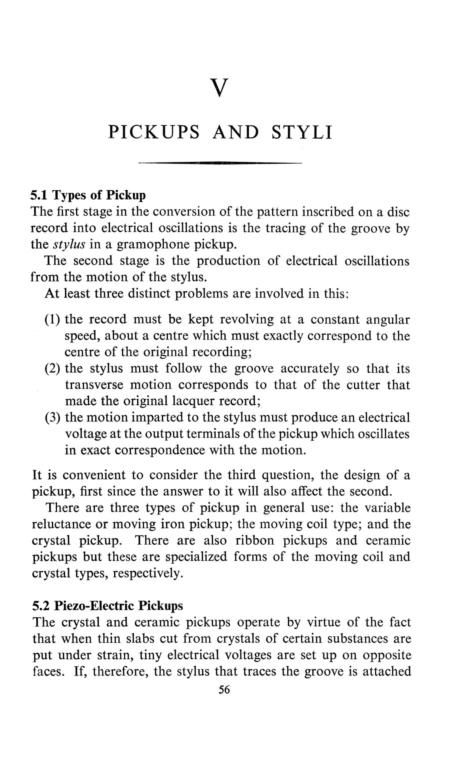

Information on how the pickup works ( excerpt from the 1956 Gramophone Handbook )
