4. The Ditchburn Mk2R Music Maker 30
Technical & Schematics.
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7

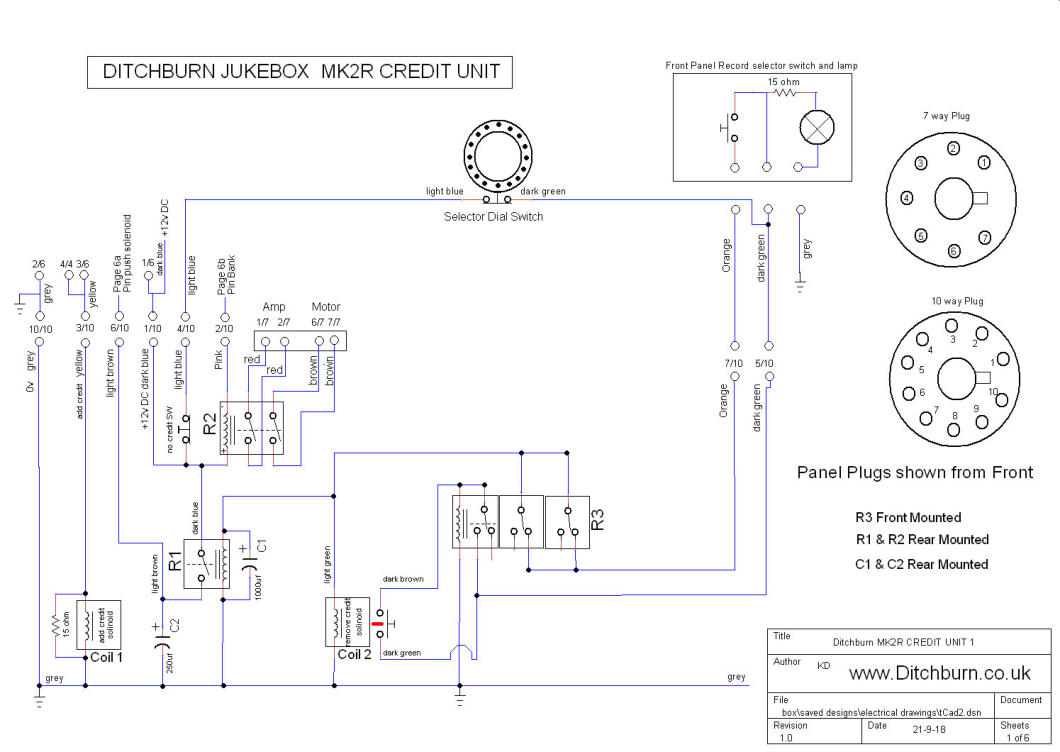

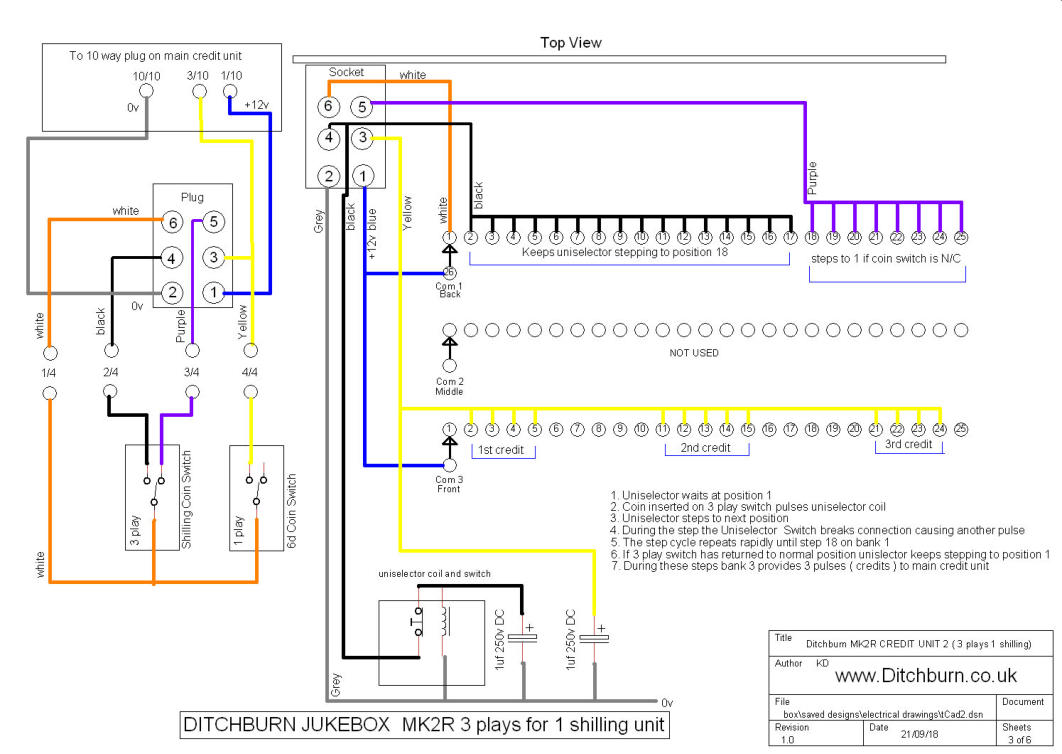

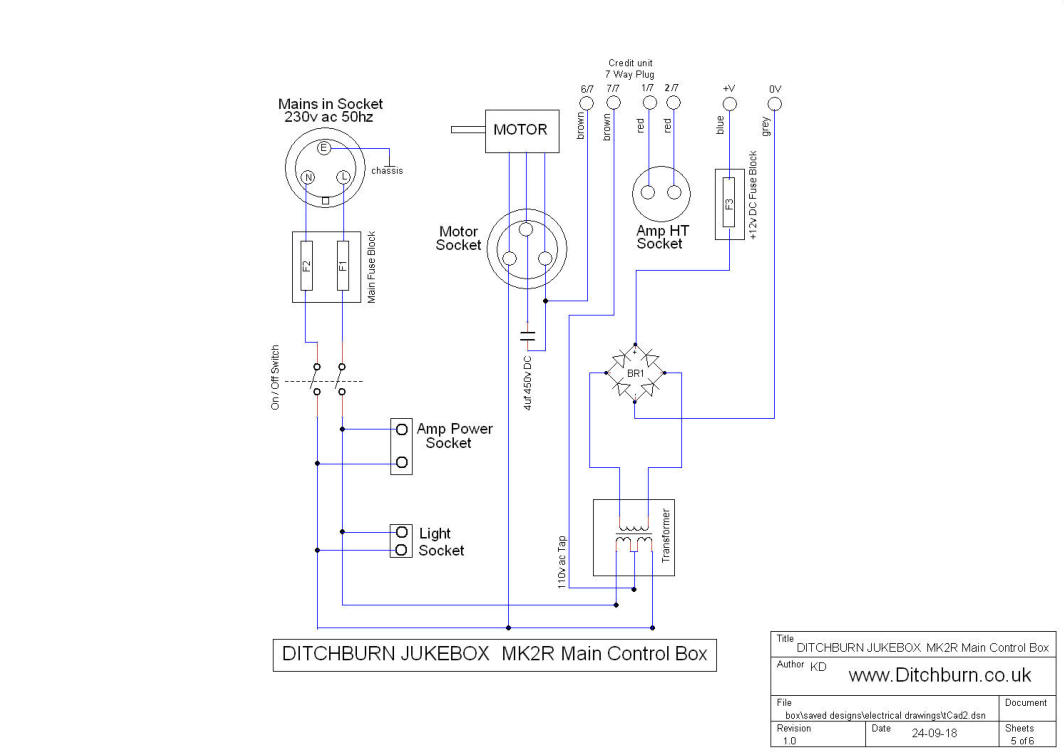

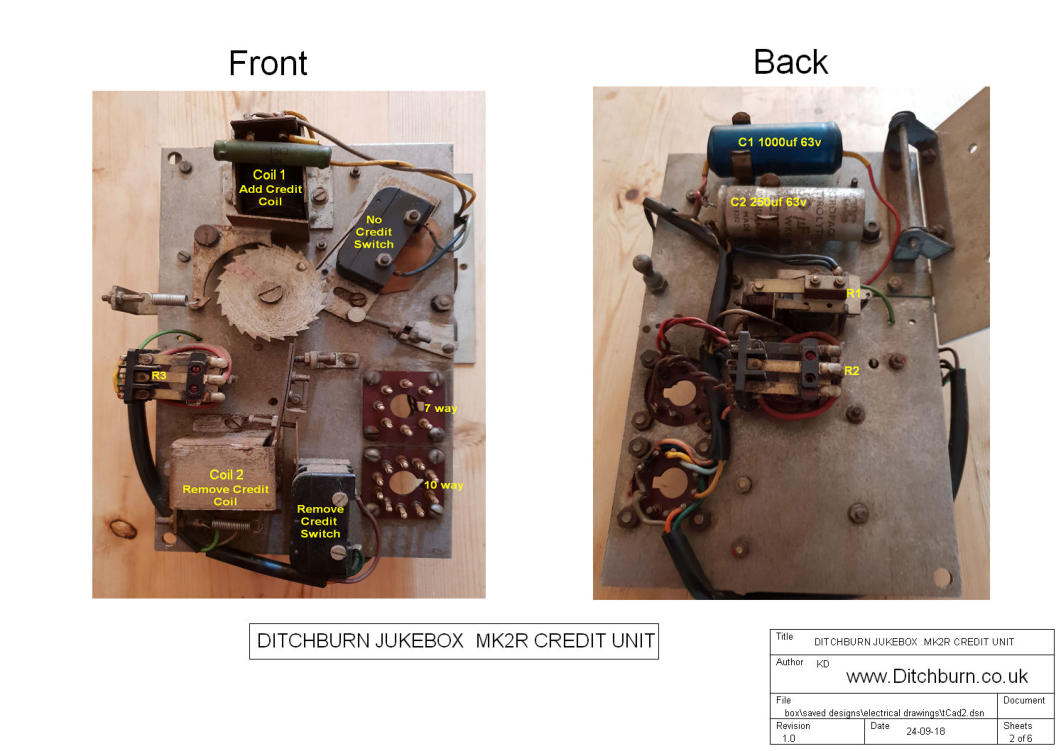

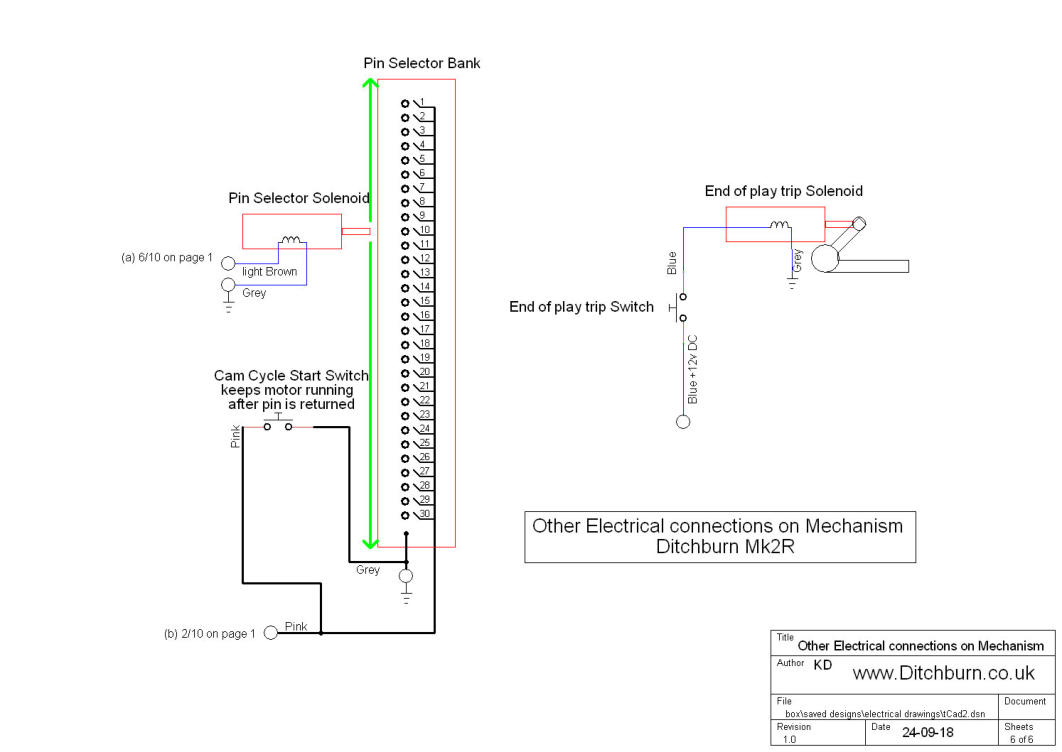

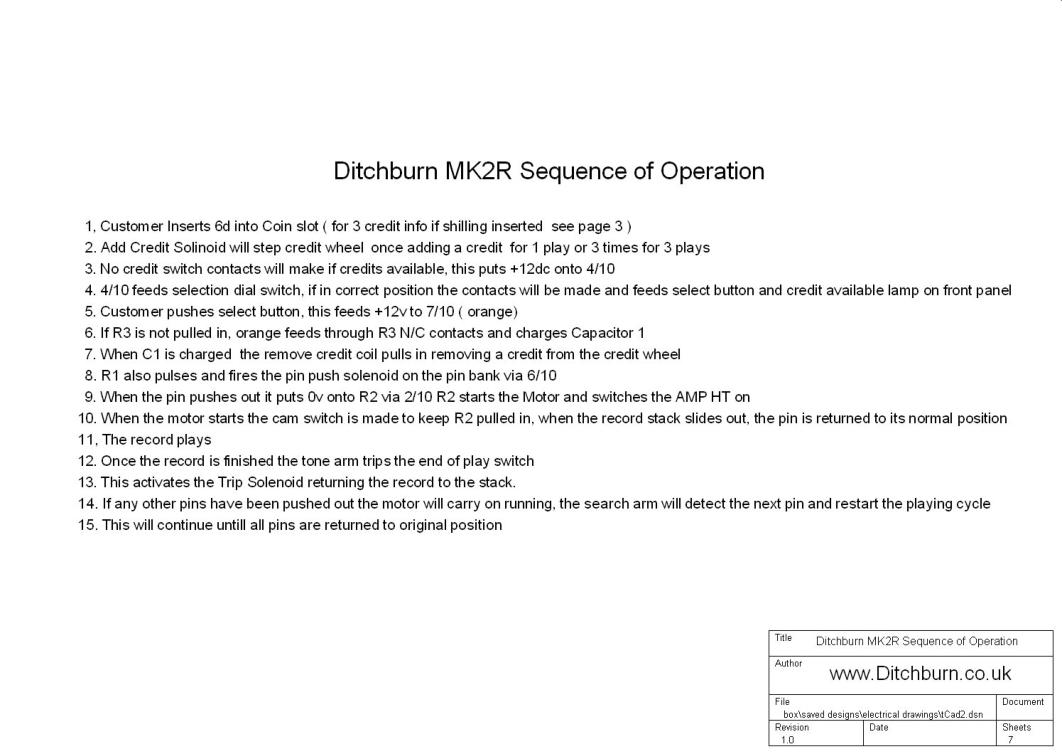

The MK2R Electrical Schematics

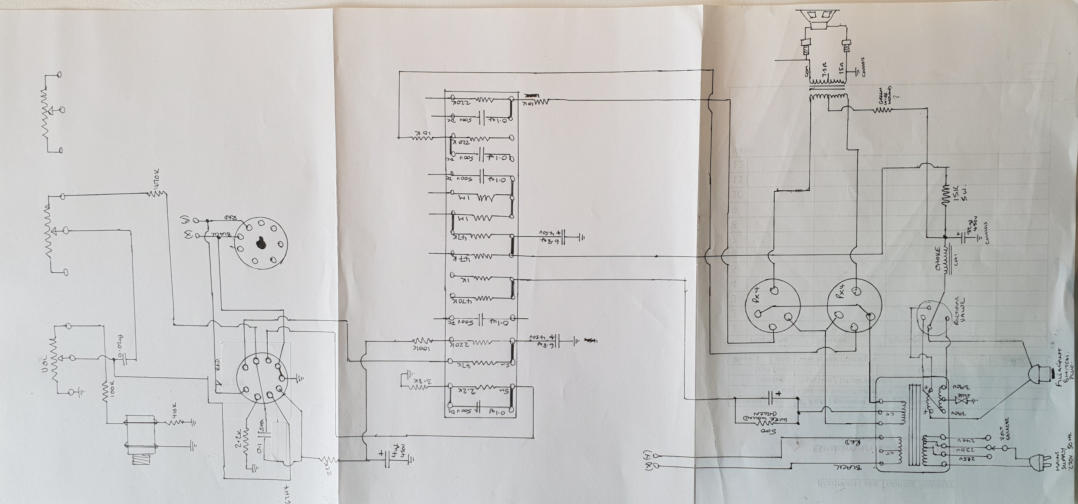

Ditchburn Mk2R Amplifier Drawing ( incomplete )

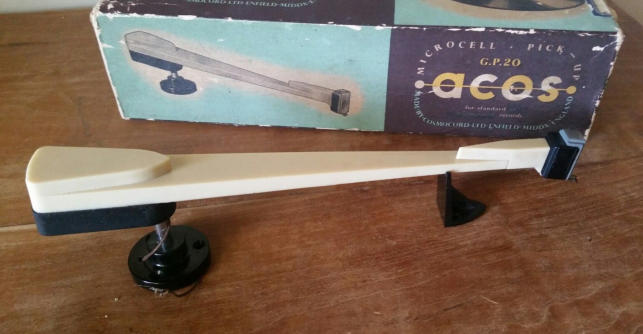

The Ditchburn MK2R Music Maker used the acos GP-20 style of Tonearm and HGP 39-1 LP Crystal Pickup

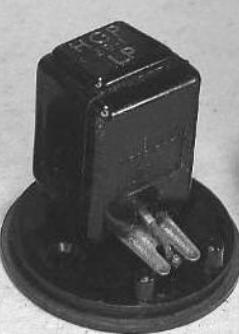

The Cartridge uses a crystal and replaceable Stylus

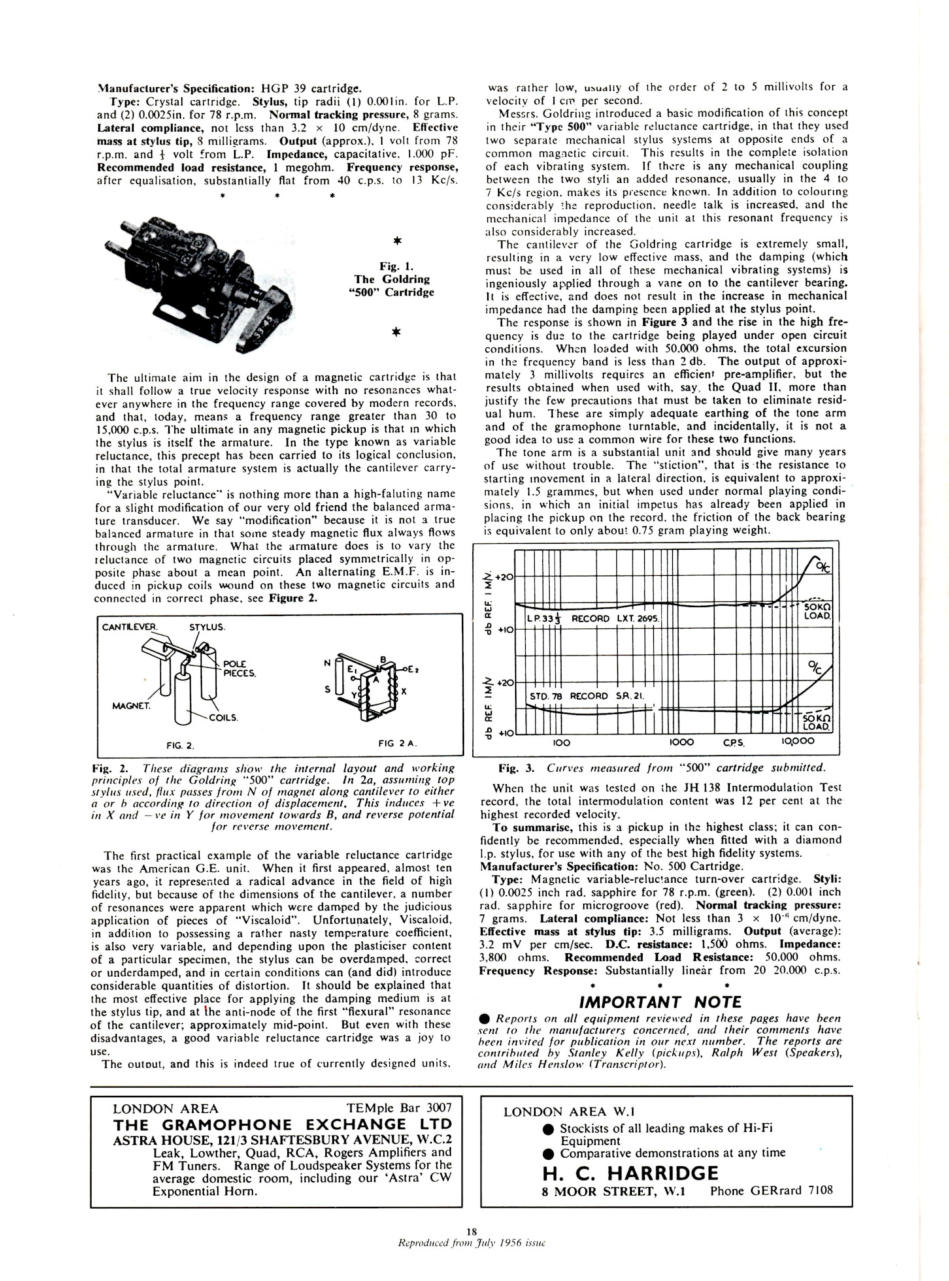

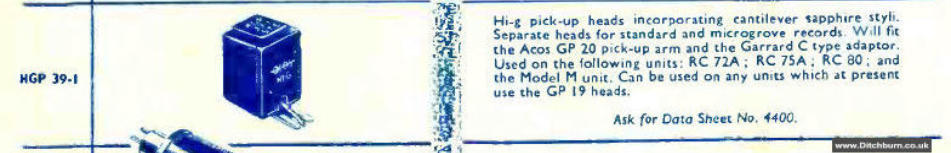

A 1956 Review of the HGP39-1  pickup  part 1

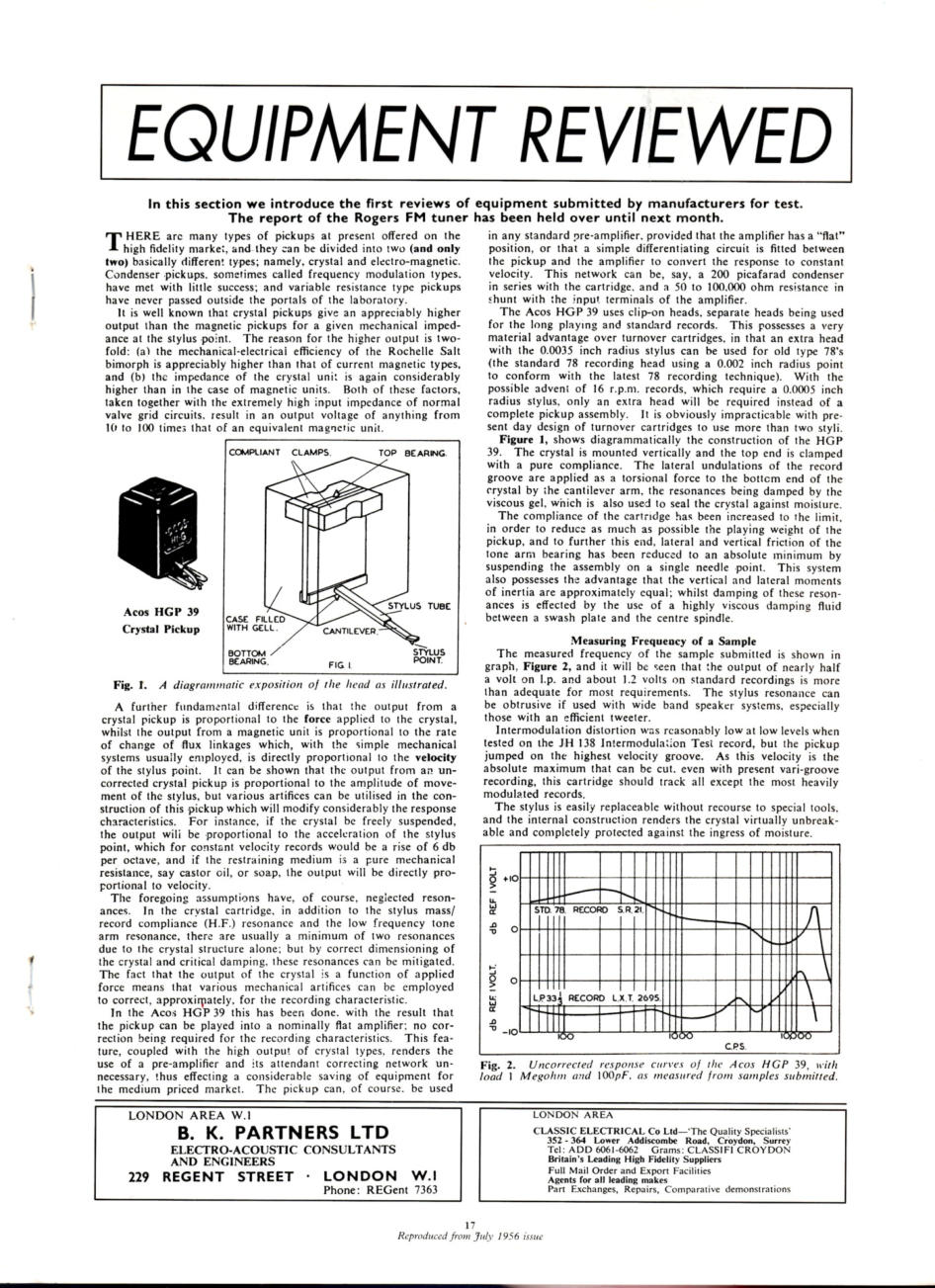

A 1956 Review of the HGP39-1  pickup  part 2

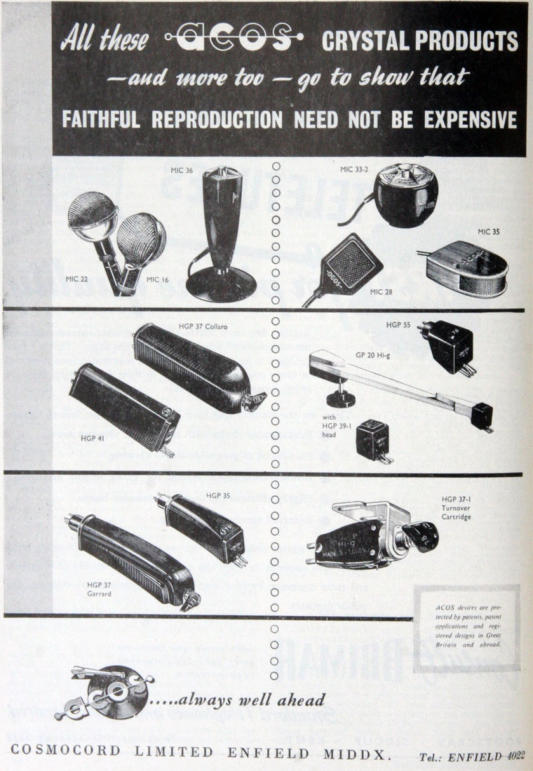

Advertisement of Acos products

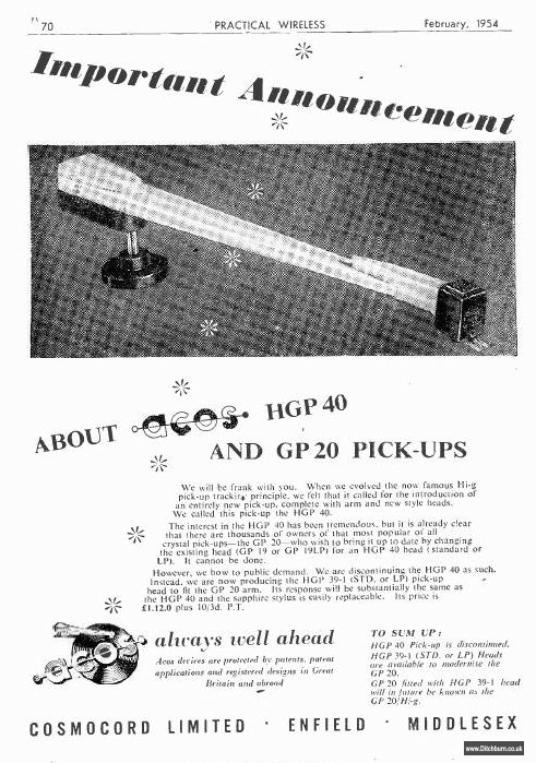

Acos announcement  regarding its tone arms

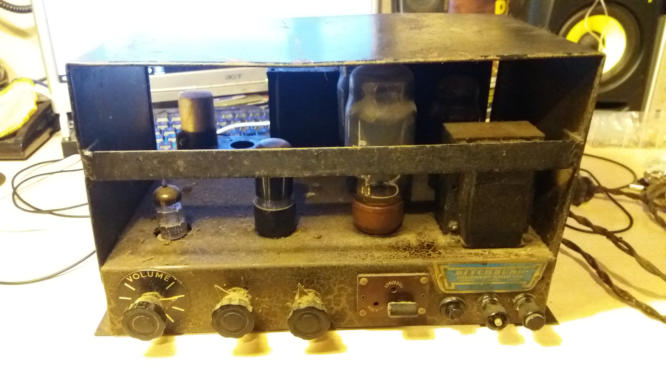

The BTH. British Thomson-Houston Co Ltd amplifier fitted to MK2 Music Makers

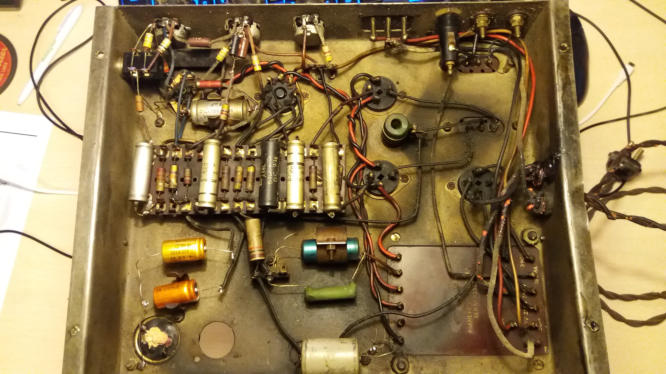

The underside of BTH. British Thomson-Houston Co Ltd amplifier.

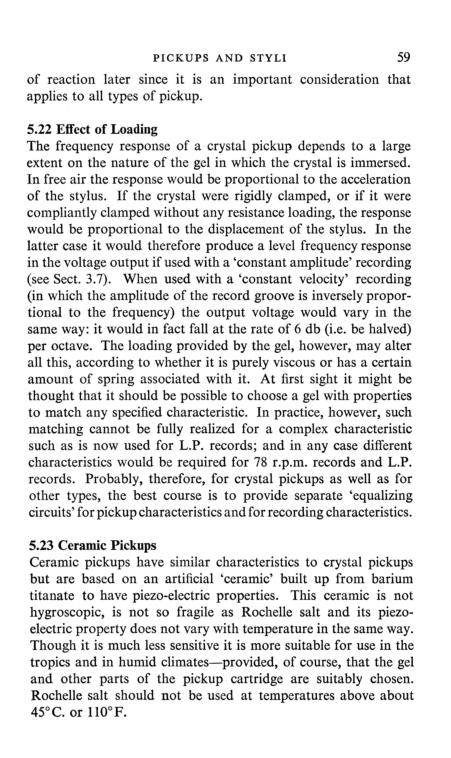

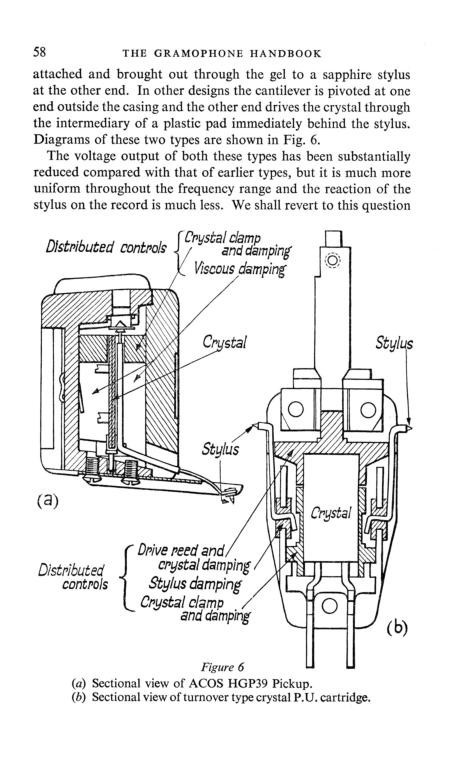

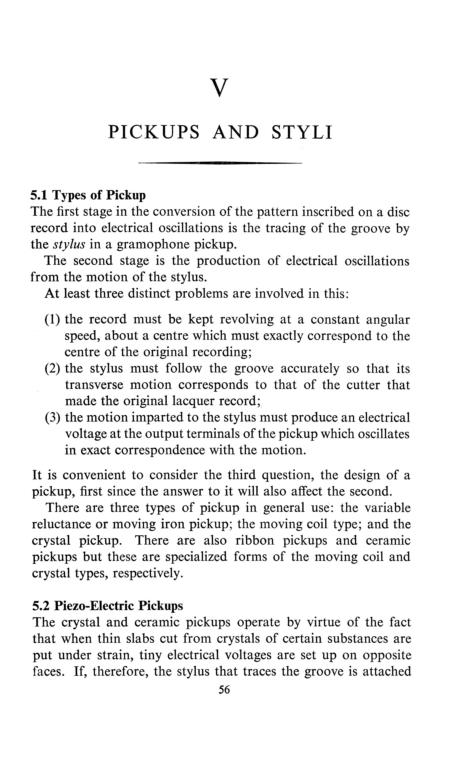

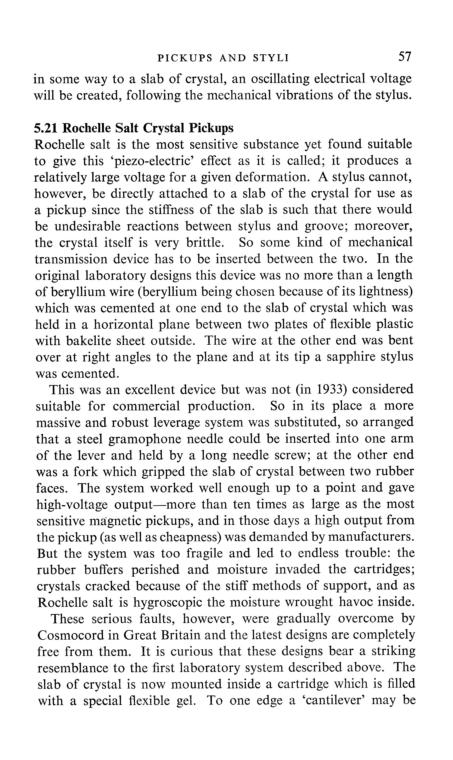

Information on how the pickup works ( excerpt from the 1956 Gramophone Handbook )
